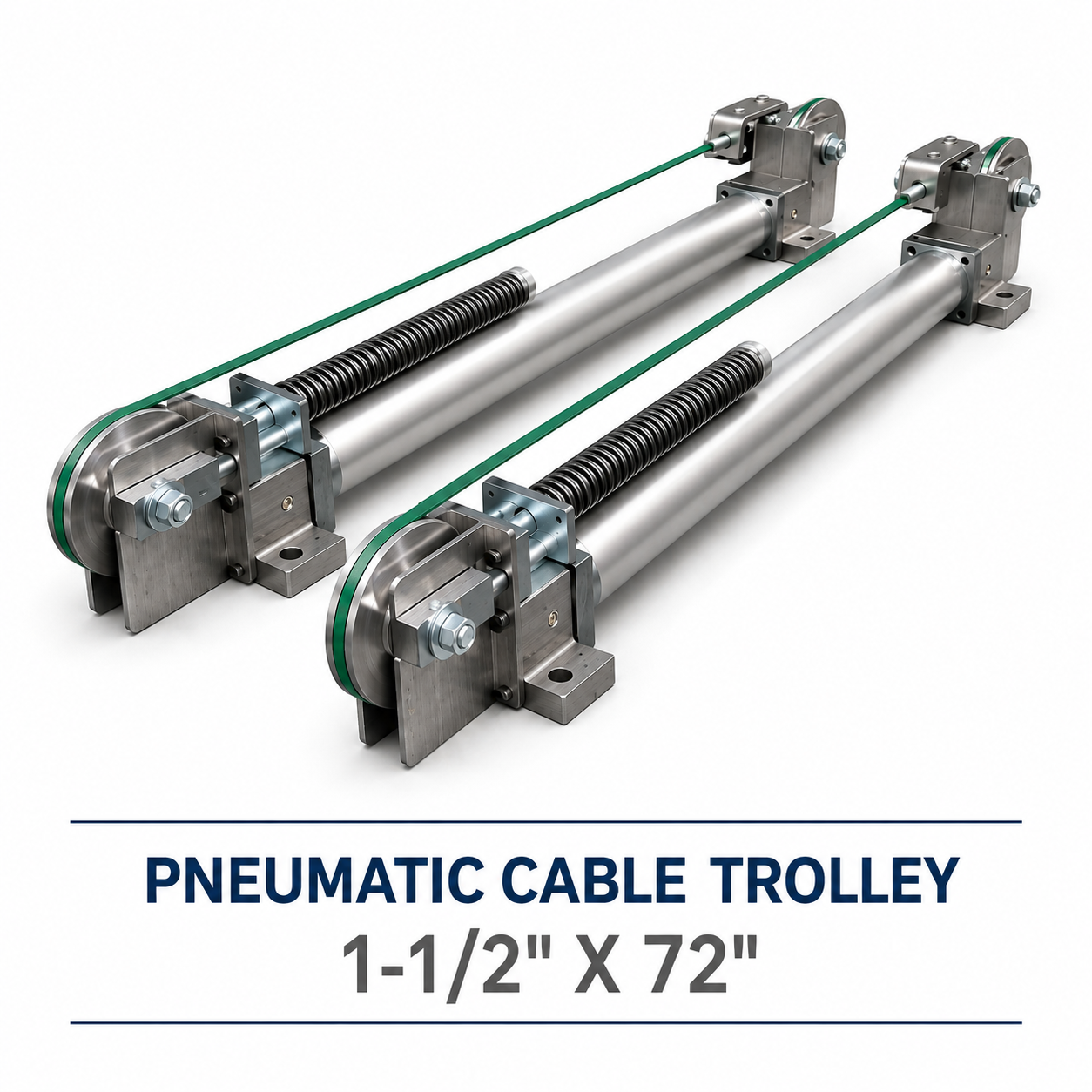

1-1/2 X 72 Cable-Trol

The 1-1/2 X 72 Cable-Trol is a pneumatic rodless cable cylinder designed to provide dependable linear motion in industrial equipment with limited installation space. Featuring a 1-1/2-inch bore and an extended 72-inch stroke, this actuator delivers long-distance movement without requiring the additional clearance of a conventional piston rod.

Compressed air moves the internal piston, while the attached cable transfers motion to the external load. This compact arrangement allows the cylinder to provide its full stroke within approximately the length of its body. An equal effective piston area helps produce consistent operating force in both directions.

Product Features

• 1-1/2-inch cylinder bore
• Extended 72-inch operating stroke
• Pneumatic rodless-cylinder operation
• Space-saving cable-driven design
• Equal effective piston area in both directions
• Suitable for long-travel linear-motion applications
• Compact alternative to a conventional rod cylinder
• Durable industrial construction
• Configurable mounting and port options
• Compatible with various Cable-Trol accessories

The 1-1/2 X 72 Cable-Trol is suitable for machinery requiring extended linear travel without excessive installation length. Depending on the equipment configuration, Cable-Trol cylinders can support remote movement, directional transfer, rotary motion, and motion around corners.

Correct cable tension is essential for dependable performance and maximum cable and seal life. Loose cables may whip during acceleration or stopping, while excessive tension may cause premature cable and component wear. Inspect the cable, pulleys, seals, mounting hardware, and pneumatic connections regularly.

Before ordering, verify the bore, stroke, mounting arrangement, port positions, cable configuration, operating pressure, and required accessories.

Choose the 1-1/2 X 72 Cable-Trol when your industrial equipment requires reliable 72-inch travel in a compact, space-efficient pneumatic actuator.
