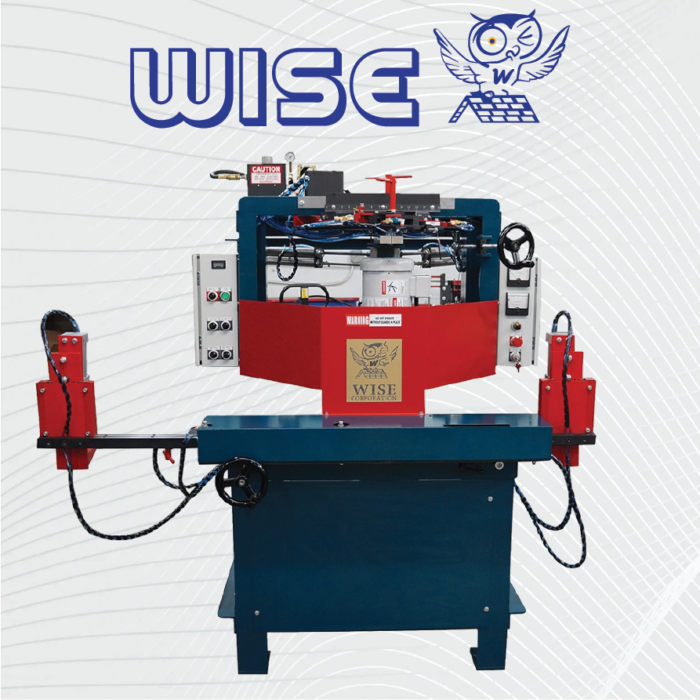

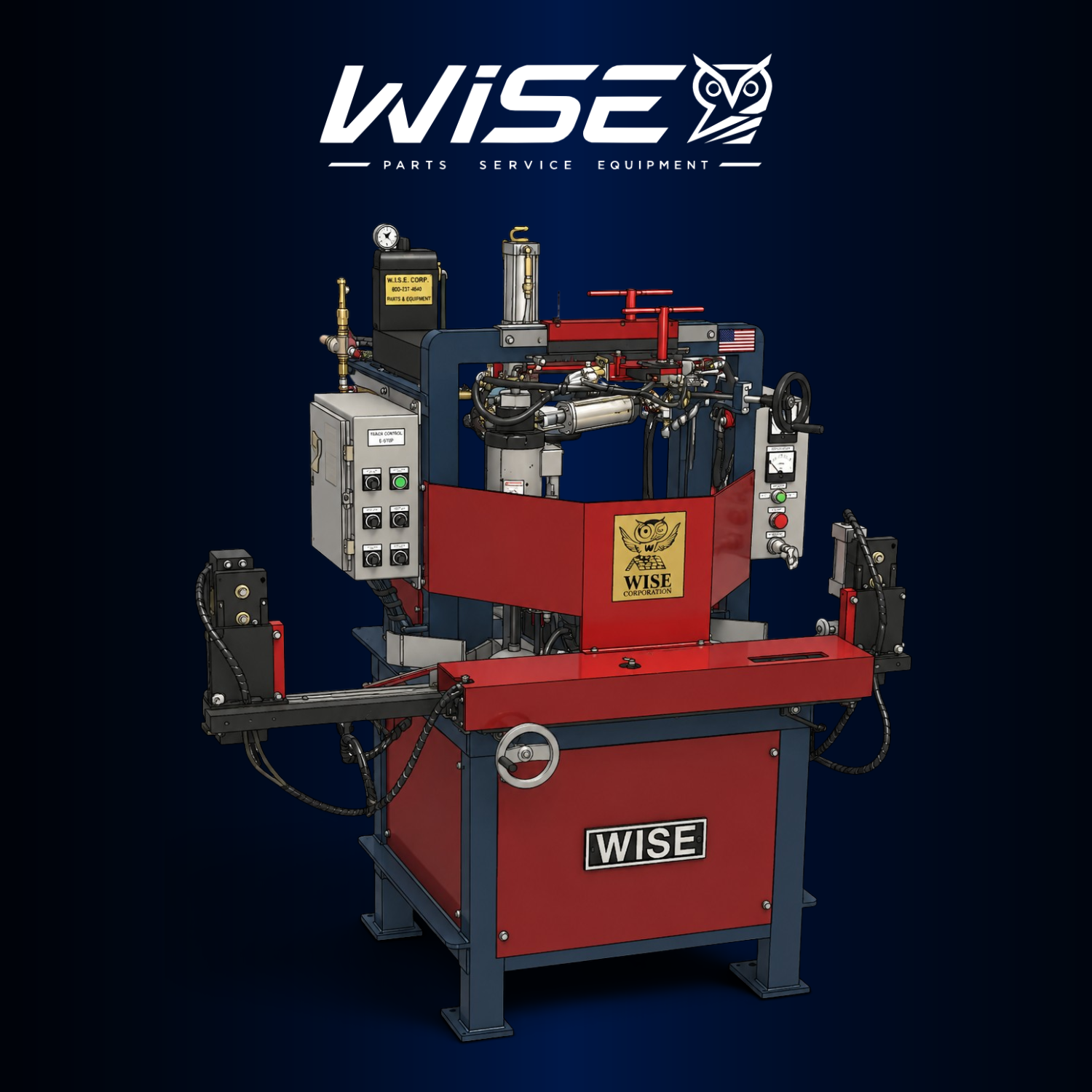

WISE 5200 Automatic Stair Router

Description

The WISE 5200 Automatic Stair Router is a heavy duty, labor saving work center designed to simultaneously route both stringers with ease and efficiency. The continuous automatic feed and automatic shut off eliminate the need for high skilled labor, while fast and simple tread and riser settings produce error free operations for time tested and field proven stair building.

• Key Features
• Fast simple tread, rise and run settings
• Built in Jump Dado Function
• Heavy Duty Tyler Spindles
• Enclosed Valve Bank
• Heavy Duty Clamp and Feed System
• Specifications
• Stringers: up to 2″ Thick x up to 12″ Wide x Unlimited Length
• Tread: up to 1-1/2″ Thick x 8 to 11″ Wide
• Riser: 3/4″ Thick x 5-3/4″ to 9″ High
• Air Requirements
• 3 cfm @ 110 psi – 3/4” Feed Line
• Electrical Requirements
• Standard: 230v, 3 Phase, 12 Amp, 60 HZ
• Optional: 460v, 3 Phase, 5.4 Amps, 60 HZ
• Dimensions
• 5′ Long x 3′ Wide x 5′ Tall

• Weight
  1800 lbs

• Optional Machines Available
• Wise 5210 Stringer Assembly Table
