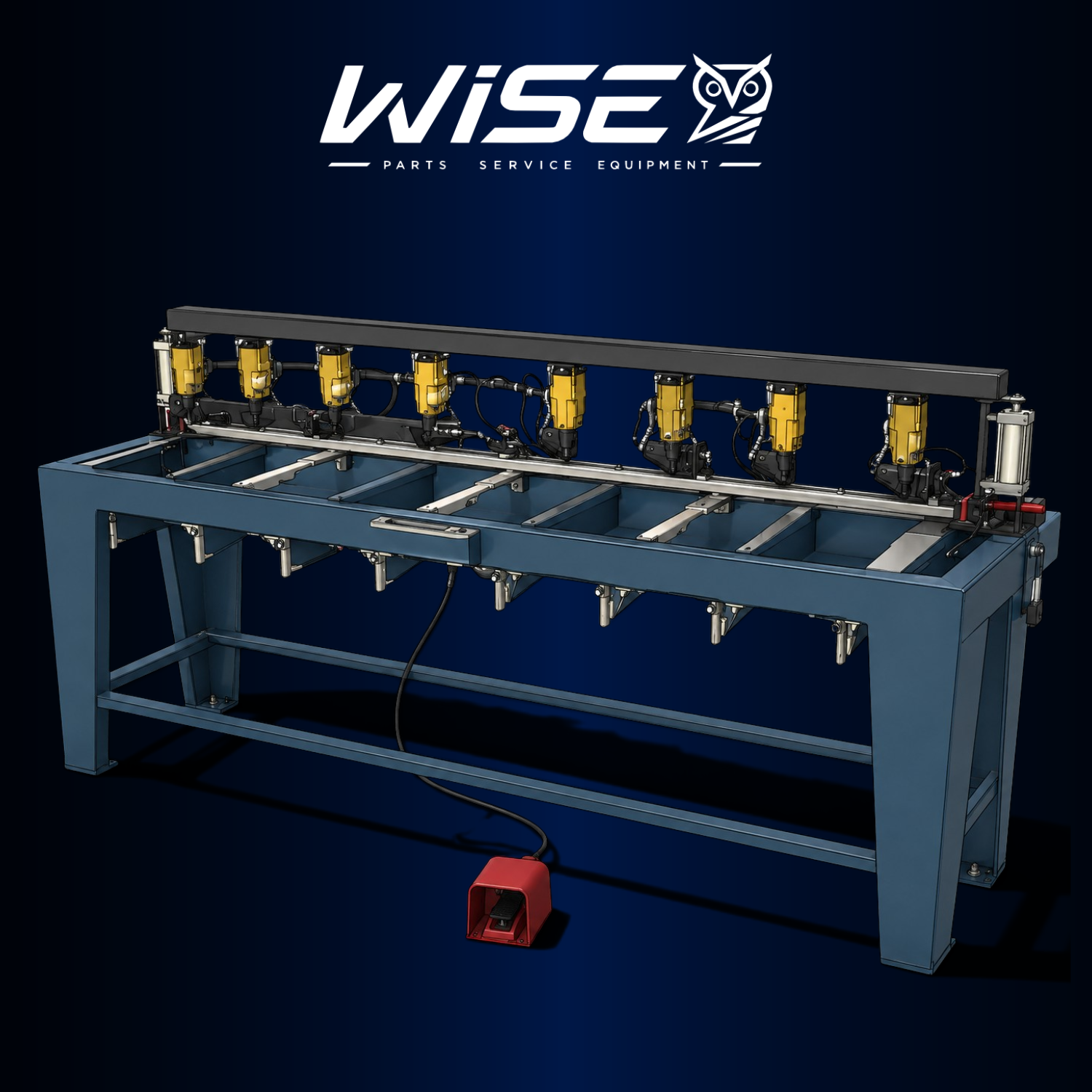

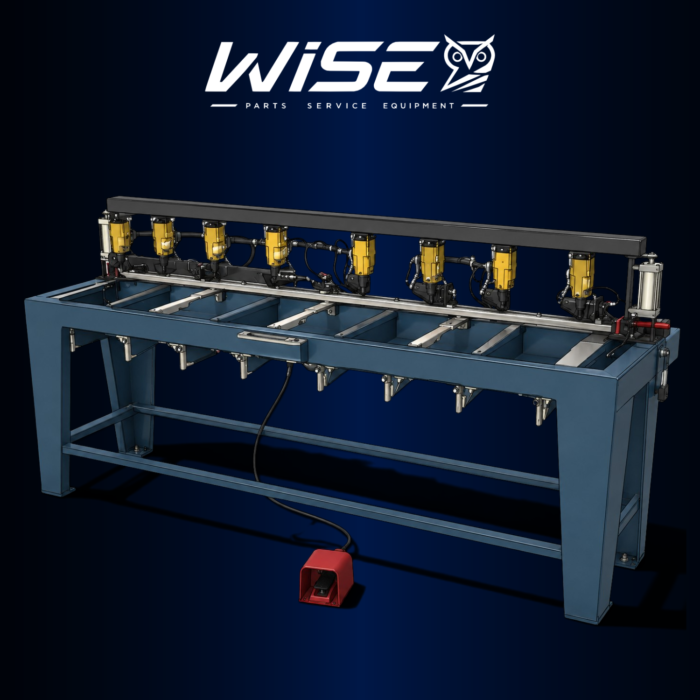

Wise 3200 Stop Attacher

Description

The WISE 3200 Stop Attacher is designed for an operator to align and attach Stops to Jambs and Headers with speed and accuracy. The WISE 3200 is engineered for high production and versatility for various types and sizes of Stops and Jambs up to eight feet. It is capable of firing up to eight staple guns simultaneously with a five second-cycle time. Offering quick adjustments for stop backset and staple depth.

• Key Features
• Accepts most manufacturers standard gun
• Accommodates interior/exterior Jambs
• Guns rotate 360 Degrees for Staple placements
• Adjustable clamps for bowed material
• No electric required
• Specifications
• Jambs
  • Thickness: 1/2” to 1-1/2”
  • Length: up to 8-0
  • Width: 2-1/2” to 10-1/2”
• Air Requirements
• 2 cfm @ 90 psi – 3/4” Feed Line
• Electrical Requirements
• None Required
• Dimensions
• 9′ Long x 3′ Wide x 4′ Tall

• Weight
  650 lbs

• Optional Machines Available
• Wise 1500 Strike Jamb Machine
• Wise 1525 Hinge Jamb Machine
• Wise 1525A Automatic Hinge Jamb Machine
• Wise 3400 Split Jamb StitcherJamb Stitcher
